Agera's Ac Spot Welding Machine
Agera’s AC spot welders are easy to operate and offer a broad welding range, with power options from 25kVA to 200kVA. For welding stainless steel plates, these machines work best with thicknesses of 1-10mm. For example: He can weld the metal casing of outdoor LED screens. The standard configuration includes a single-cylinder pressure system, but for special products like wire mesh, a dual-cylinder setup can be added. Agera can also customize configurations to meet your needs, such as adding variable frequency features to enhance equipment stability.
Small power resistance spot welding machine, we are generally used to weld about 2 mm of small metal parts.
The machines are often used for resistance brazing and can also be used to weld nuts and thick sheet metal.
This AC machine uses a 3-phase input power supply for more accurate current control during welding work.

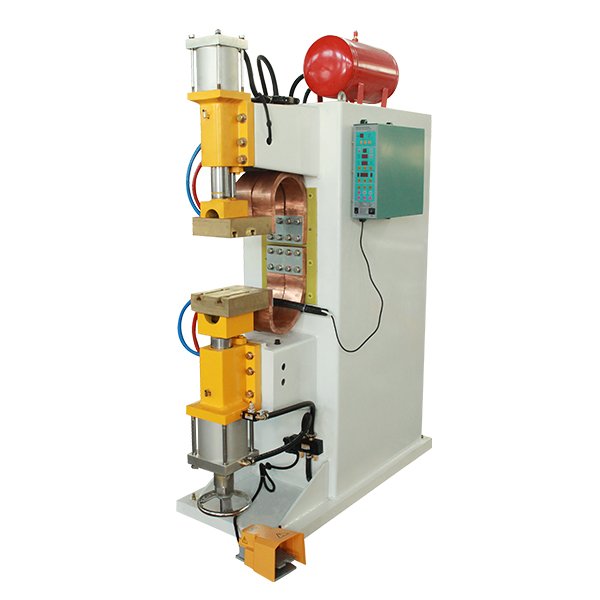

Specially designed for wire mesh welding, and upper and lower cylinders control the welding stroke.
Agera’s AC spot welding machine is also made of steel frame, which presents simple but high-end industrial equipment through fine processing and assembly. These devices have a long service life and can be used for more than 10 years or more under normal use.
These machines are made of pressurized cylinder base and upper arm insulation, when you install the tooling in the lower base of the welding machine, do not worry about causing short circuit problems. This structure ensures the safety of the machine and the operator, is simple and practical.
These devices look large, but they are very simple to operate. You can set the welding parameters in advance through the key screen, and then you can start the continuous welding work, no other actions are required in the middle.
- The Parameter Of Ac Spot Welding Machine
| Model | ADN-25 | AD(T)N-40 | AD(T)N-63 | AD(T)N-100 | AD(T)N-150 | AD(T)N-200 | |
| Rated Capacity | KVA | 25 | 40 | 63 | 100 | 150 | 200 |
| External Power Supply | ø/V/HZ | 1/380V/50Hz | 1/380V/50Hz | 1/380V/50Hz | 1/380V/50Hz | 1/380V/50Hz | 1/380V/50Hz |
| Primary Cable Specifications | mm2 | 16 | 25 | 35 | 50 | 120 | 120 |
| Maximum Short-circuit Current | KA | 13 | 19 | 21 | 30 | 35 | 40 |
| Rated load Duration | % | 50 | 50 | 50 | 50 | 50 | 50 |
| Welding Cylinder Specification | Ø*L | Ø80*60 | Ø125*60 | Ø125*60 | Ø125*60 | Ø160*100 | Ø160*100 |
| Maximum Working Pressure | N | 2500 | 6000 | 6000 | 6000 | 10000 | 10000 |
| Network Air Supply Pressure | Mpa | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 |
| Cooling Water Flowrate | L/Min | 6 | 6 | 8 | 10 | 14 | 14 |
| Compressed Air Consumption | L/time | 1.43 | 3.56 | 3.56 | 3.56 | 5.84 | 5.84 |
