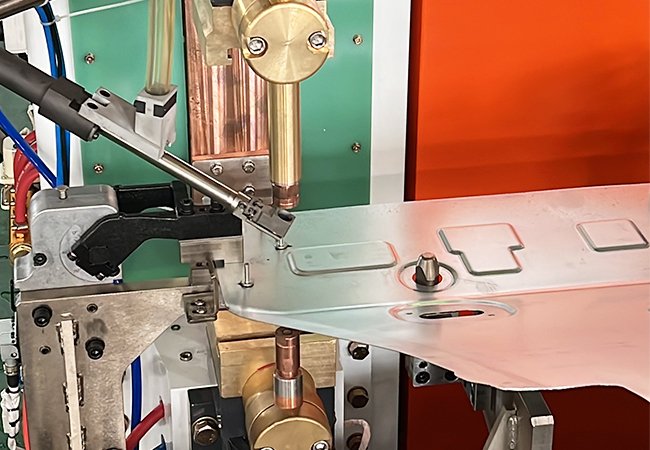

NC Stud Automatic Projection Welding Machine
This machine is a welding device designed by Agera for stud welding of the bottom plate of the automotive battery pack. This machine is equipped with a screw conveyor, which can automatically convey the screws to the welding position.
It has a high-precision positioning system, and the XY slide table has a repeat positioning accuracy of ±0.05mm. With the zero mark block and tooling integrated detection, it ensures that the screw welding position is ≤±0.5mm, meeting the strict consistency requirements.
The Video of The Product
Agera is a leading source of resistance welders in China, providing a range of standard welders such as spot welders, projection welders, butt welders and diffusion welders to all over the world. In addition, Anga can also provide OEM and OEM services, if you are interested in welding equipment, you can contact us.
Maintenance and Switching
The electrode replacement height is ergonomic, reducing the difficulty of maintenance and downtime; the tooling and slide are separated, supporting quick replacement within 10 minutes; the slide rail is equipped with an accordion cover for protection.

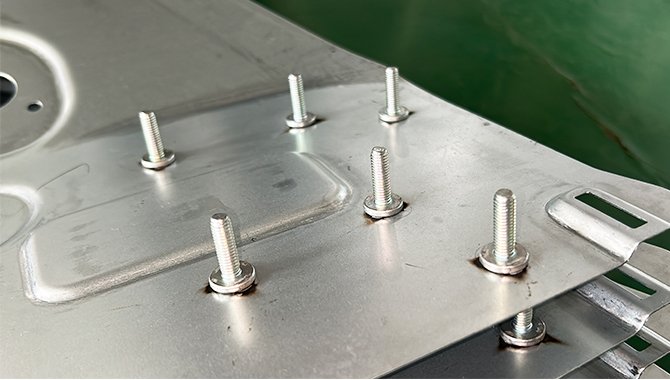

Intelligent Error Prevention
Agera’s NC stud spot welding machine adopts a floating vacuum adsorption nail feeding system with a failure rate of ≤0.3%. It is equipped with a vacuum sensor to monitor the screw adsorption status in real time to avoid leaking and empty welding, and ensure welding quality;
This machine integrates protective fences, safety gratings, safety door locks and emergency stop buttons, complies with ISO-13849 safety standards, supports two-hand start + foot switch dual modes, and eliminates the risk of misoperation;
Built-in single-piece and batch welding counting functions, combined with real-time detection data feedback of displacement ruler, out-of-tolerance alarm and record fault points, support production statistics and process optimization.

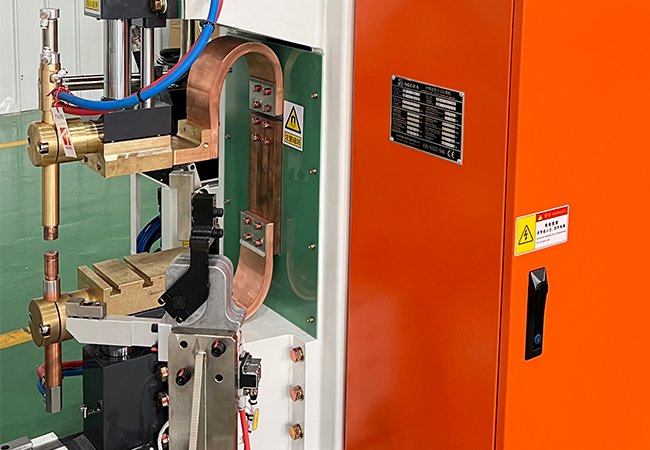

This machine uses a medium-frequency inverter controller, equipped with Agera’s resistance welding machine and screw conveyor. Every weld can be accurately welded and can pass quality inspection to ensure welding consistency.
- WELDING SAMPLES
