Automatic Welding Workstation for Storage Cabinet Box Body
Incluing Equipment:
Machine de soudage par points MFDC
Capacity Discharge Spot Welder
ABB Brand Robot
Welding products:
Enclosure box body spot welding
Welding method:
Manual positioning, automatic feeding, automatic welding, automatic cutting.
The features of the automatic welding workstation for box body
This is an automatic welding workstation specially designed by AGERA for welding the box body of energy storage cabinets. It features a dual workstation design, with automatic clamping of fixtures and automatic grasping of the workpieces by robots to deliver them to the welding position. It is equipped with a double-head medium-frequency spot welder for welding the locks and covers to the box body, as well as an energy storage butt welder and a hinge feeding mechanism for welding the hinges. After welding is completed, the robot will deliver the finished product to the cutting platform. This is a flexible welding production line that enables large-scale welding of cabinets.
Pourquoi choisir Agera ?
Agera est un fabricant leader de machine de soudage par points en Chine. Nous fournissons solutions de soudage par résistance à guichet unique. Nos machines à souder sont de qualité fiable et ont passé ISO certification de qualité et CE certification. Nous pouvons non seulement vous fournir rapidement machines de soudage par résistance standard, mais aussi personnaliser semi-automatique ou entièrement équipement de soudage automatique pour toi.
Agera dispose d'un centre d'usinage de pointe pour assurer le prototypage et l'installation rapides de la structure de la machine à souder. Nous disposons d'une gamme complète de processus de test des produits pour vous garantir une machine satisfaisante. De plus, nous disposons d'un une équipe technique solide, en insistant sur la R&D et l'innovation pour concevoir une machine plus parfaite pour vous. Notre équipe après-vente est toujours prêt à accompagner votre production normale.
Advantages of the Automatic Cabinet Welding Equipment

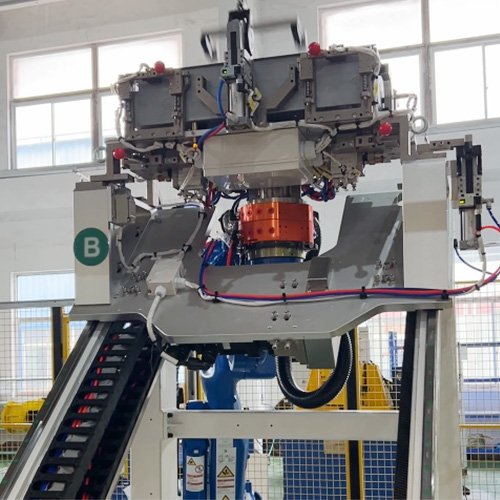

This equipment uses two workstations. One workstation is for loading materials, and the other can be used for manually placing the workpieces, there by improving the welding efficiency and the utilization rate of the machine.
The integrated workflow of the slide table fixture, robot, and welding unit only requires one person to perform the box assembly and loading. The system automatically completes the welding and unloading of all components of the energy storage cabinet, significantly reducing labor hours and human fluctuations.
The robot works in coordination with the dedicated tooling / slide table. The repetitive positioning accuracy target is ±0.2mm. Combined with the monitoring during the welding process, it can meet the assembly gap requirements specified in the drawings, reducing rework.
During the welding process, the equipment will collect and store real-time key curves (such as welding current, welding time, welding pressure, etc.) for each piece, supporting batch tracking, quality analysis et SPC improvement.
