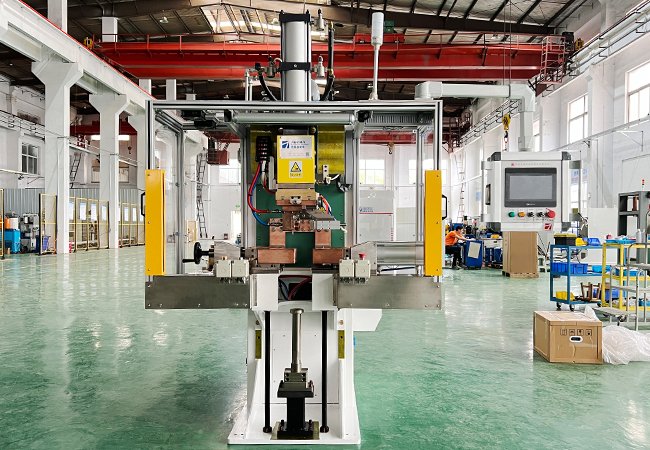

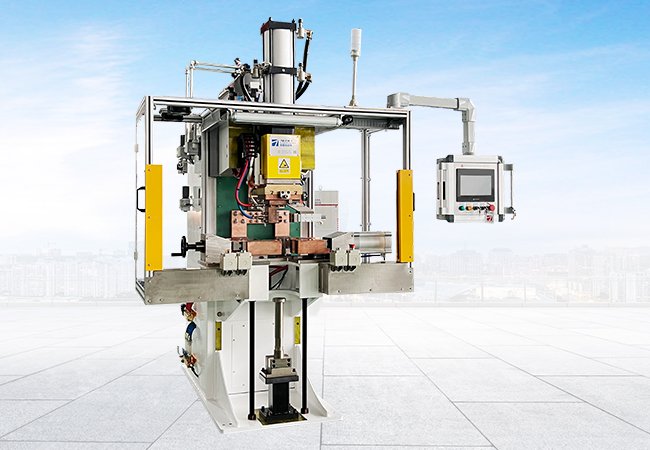

쇼크 업소버 포크 암 프로젝션 용접기
모델: AZDB-260
Equipment power: 200KW

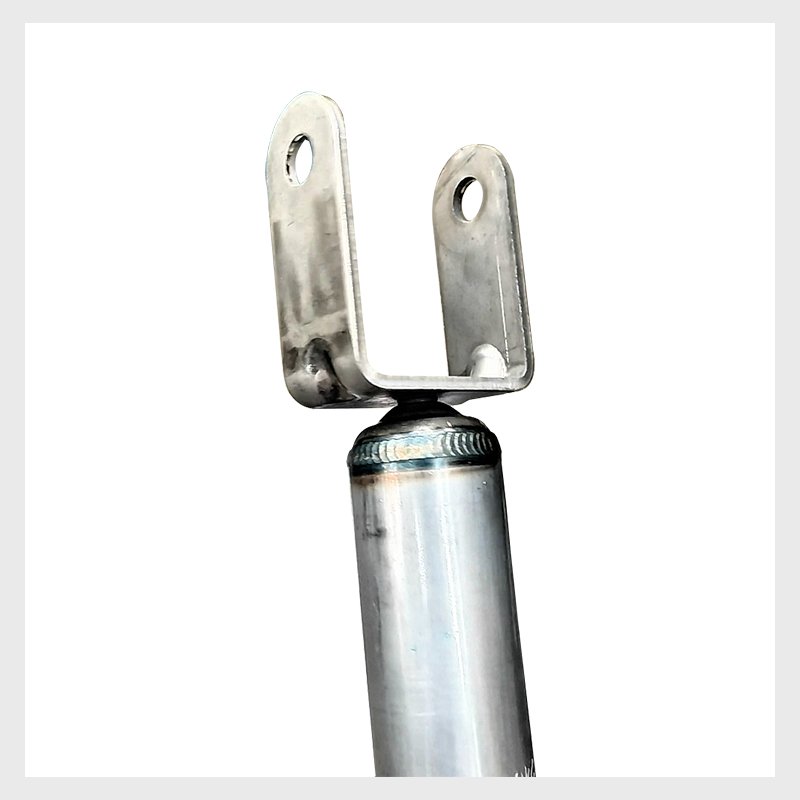

Welding product: Shock absorber fork arm
Welding process: Resistance projection welding
Welding method: Manual loading and unloading of workpieces, automatic welding
Specification: Dimension: 1600*1700*2400MM, Weight: 1500KG
Addressing the pain points
- It is difficult to accurately position multiple welded components: The original equipment of the customer is a common spot welding machine. Workers place the components one by one, resulting in large positioning error.
- The welding dimensions cannot be guaranteed: The components have coaxiality requirements, but the pneumatic fixture has inconsistent issues, and the tolerance after welding is too large.
- The welding efficiency is very low and there are safety hazards: The operation space of the components is limited, and it takes a long time for workers to place the components manually.
Equipment Features
The shock absorber fork arm spot welding special machine is an automatic spot welding machine developed by AGERA according to customer requirements. The equipment uses left and right cylinders for clamping and welding, which can meet the size requirements of various products. During the welding process, parameters such as pressure, current, and time can be monitored.


Fixed positioning fixtures
The automatic spot welding machine for the shock absorber fork arms of Agera uses dedicated positioning fixtures. Before power-on welding, it can fix the two parts to the welding position. Compared with manual positioning, this positioning method is more accurate. The automatic welding method also saves labor time and improves efficiency.
왜 Agera를 선택해야 하나요?

아게라 의 선도적인 제조업체입니다 스팟 용접기 중국에서. 우리는 제공합니다 원스톱 저항 용접 솔루션. 당사의 용접기는 신뢰할 수 있는 품질을 갖추고 있으며 ISO 품질 인증 및 세 인증. 우리는 당신에게 신속하게 제공할 수 있을 뿐만 아니라 표준 저항 용접기, 또한 반자동 또는 완전 자동을 사용자 정의할 수 있습니다. 자동 용접 장비 당신을 위한.
Agera는 용접기 구조의 신속한 프로토타입 제작 및 설치를 보장하기 위해 첨단 머시닝 센터를 보유하고 있습니다. 제품 테스트 프로세스 귀하께서 만족스러운 기계를 받으실 수 있도록 최선을 다하겠습니다. 또한, 강력한 기술 팀, 고객님께 더욱 완벽한 기계를 설계하기 위해 R&D와 혁신을 고집합니다. 애프터 서비스 팀 귀하의 정상적인 생산을 항상 지원할 준비가 되어 있습니다.
