Aluminum Busbar Flash Butt Welding Machine
Modèle: ACBS-230
Courant de court-circuit maximal : 10–60 kA
Rated duty cycle: 20%
Compatible materials: T2 copper, 1-series aluminum Al1060H24, 6-series aluminum Al6101
Welding capability: thickness 2–6 mm, width 10–30 mm, maximum busbar welding cross-sectional area 200 mm²
Dimensions: 3750 × 1500 × 2100 mm
Weight: 1500 kg
Equipment size: 1500 * 700 * 2000mm
Equipment Usage

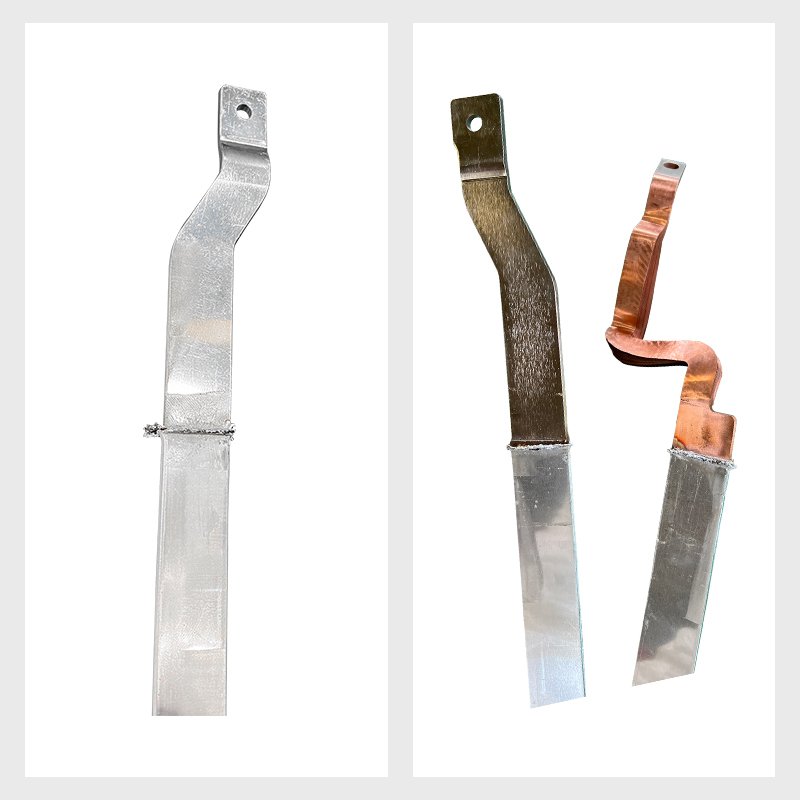

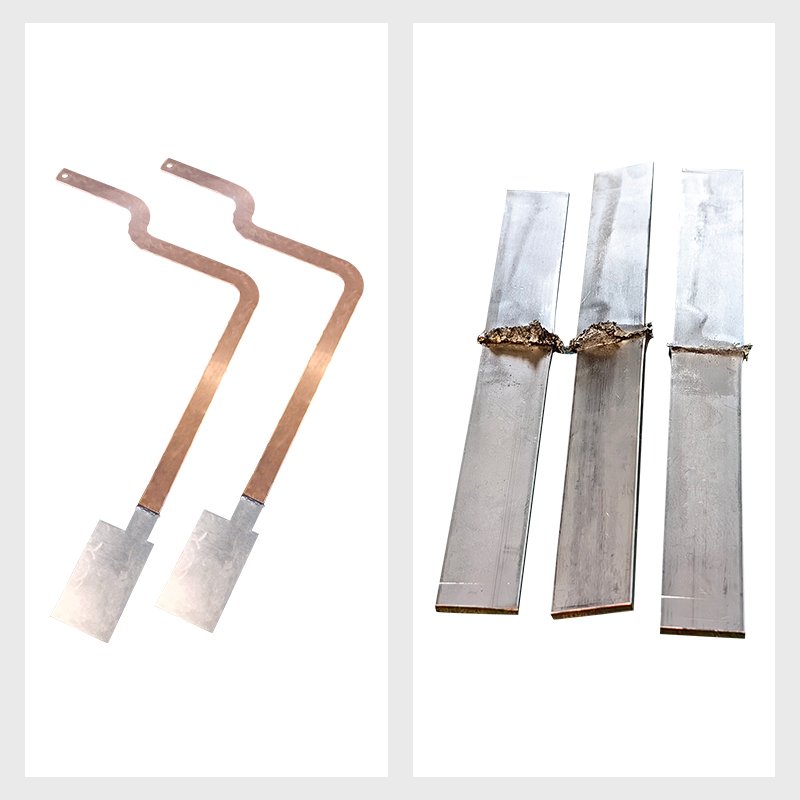

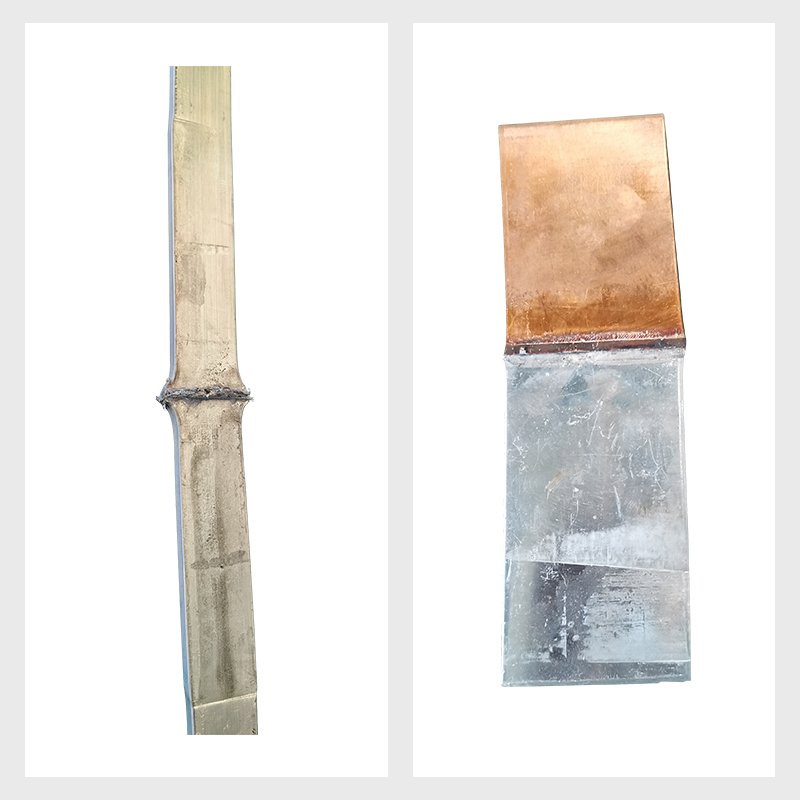

This equipment is used for the flash welding operation of copper and aluminum busbars in new energy vehicles. No filler material is required, and the plastic connection of the part ports is achieved. The equipment is mainly used for connecting the aluminum busbars of battery packs to form a firm interface.
The Advantages of the Agera Aluminum Bar Flash Welder
Equipped with a medium-frequency inverter flashing controller, using imported IGBT core components, with an inverter frequency of 1000Hz, supporting I/O/Profinet communication, precisely controlling welding current, pressure and displacement, ensuring the strength and stability of the joint.
Native support for Profinet industrial communication protocol, 100% accurate integration with factory MES system, supports remote cluster management, production data is permanently traceable, perfectly meets the requirements of digital workshop construction.
The aluminum pipe welding machine of Agera is equipped with a dust collection device. A custom dust collection hood is installed to cover the work area. The variable-frequency fan and flame-retardant pipes are directly discharged outdoors, ensuring a safe and environmentally friendly production process.
