Spring Cylinder Spot Welding Machine
Modèle: AZDB-180-QTH
Rated Capacity (20%): 180KVA
Maximum Short-Circuit Current (A): 45000A
Maximum Electrode Pressure (0.6 Mpa): 15000 N

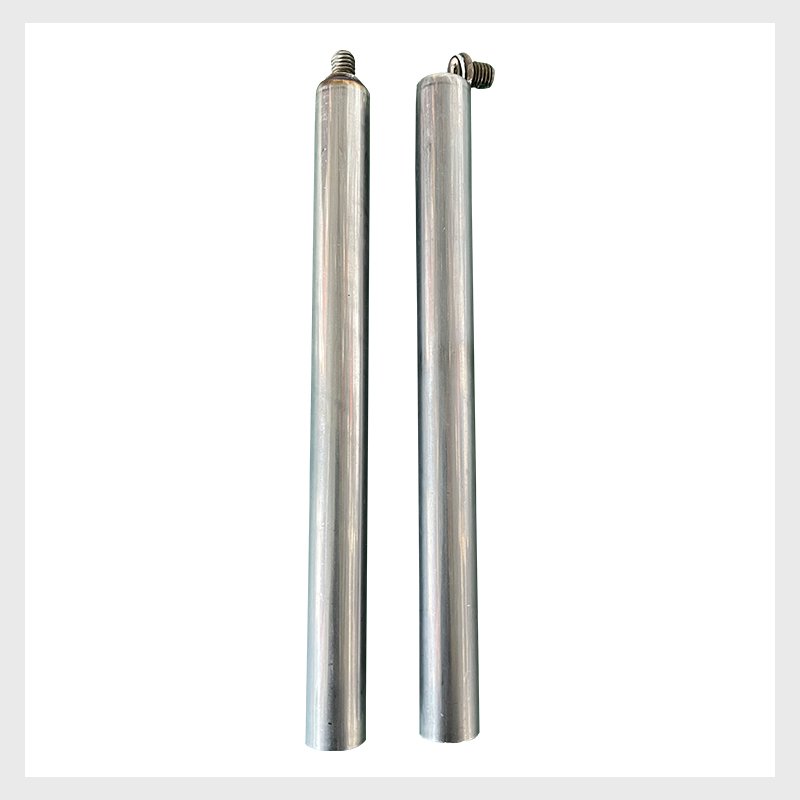

Welding Capacity: The flange specification of the bolt is Φ12; The cylinder specification that the welding fixture can hold is Φ22.
Specification: Weight: 1000KG, Size: 1500*1600*2000mm
The Production Method of The Equipment
The operation process of AGERA’s air spring spot welding machine is as follows: First, the operator places the steel tube on the swing rod, inserts the bolt into the upper electrode, starts the welding machine, then sends the swing rod to the welding position, the machine automatically clamps the steel tube, the machine head presses down to start the welding, after the welding is completed, the swing rod swings out, and the operator takes the material.
Pourquoi choisir Agera ?
Agera est un fabricant leader de machine de soudage par points en Chine. Nous fournissons solutions de soudage par résistance à guichet unique. Nos machines à souder sont de qualité fiable et ont passé ISO certification de qualité et CE certification. Nous pouvons non seulement vous fournir rapidement machines de soudage par résistance standard, mais aussi personnaliser semi-automatique ou entièrement équipement de soudage automatique pour toi.
Agera dispose d'un centre d'usinage de pointe pour assurer le prototypage et l'installation rapides de la structure de la machine à souder. Nous disposons d'une gamme complète de processus de test des produits pour vous garantir une machine satisfaisante. De plus, nous disposons d'un une équipe technique solide, en insistant sur la R&D et l'innovation pour concevoir une machine plus parfaite pour vous. Notre équipe après-vente est toujours prêt à accompagner votre production normale.
Advantages of The Air Spring Spot Welding Machine
Based on the characteristics of the spring steel, AGERA has specially customized fixtures for it. It can precisely position the workpiece at the welding position with a positioning accuracy of ±0.1mm. During the pressing process of the workpiece, it can not only ensure that the welding is not out of position, but also ensure that the welded cylinder does not deform.
The equipment is equipped with a data traceability and monitoring system, which can monitor real-time parameters such as welding time, current, and pressure. These data can be saved and accessed at any time to check the quality of the welded products, thereby improving the yield rate of product welding.
The equipment uses a medium-frequency DC welding controller, with fast and stable discharge. The welding time is only 1 second. Moreover, compared with traditional manual welding, the AGERA pneumatic spring welding special machine has rapid positioning, which not only avoids human positioning errors but also speeds up the process.
