Spring Cylinder Spot Welding Machine

모델: AZDB-180-QTH

Rated Capacity (20%): 180KVA

Maximum Short-Circuit Current (A): 45000A

Maximum Electrode Pressure (0.6 Mpa): 15000 N

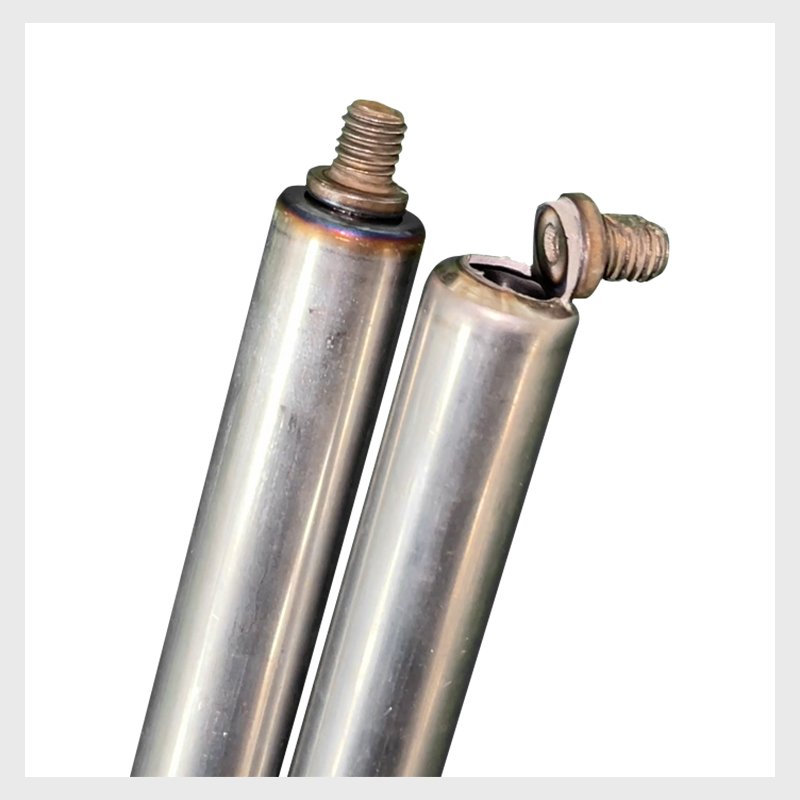

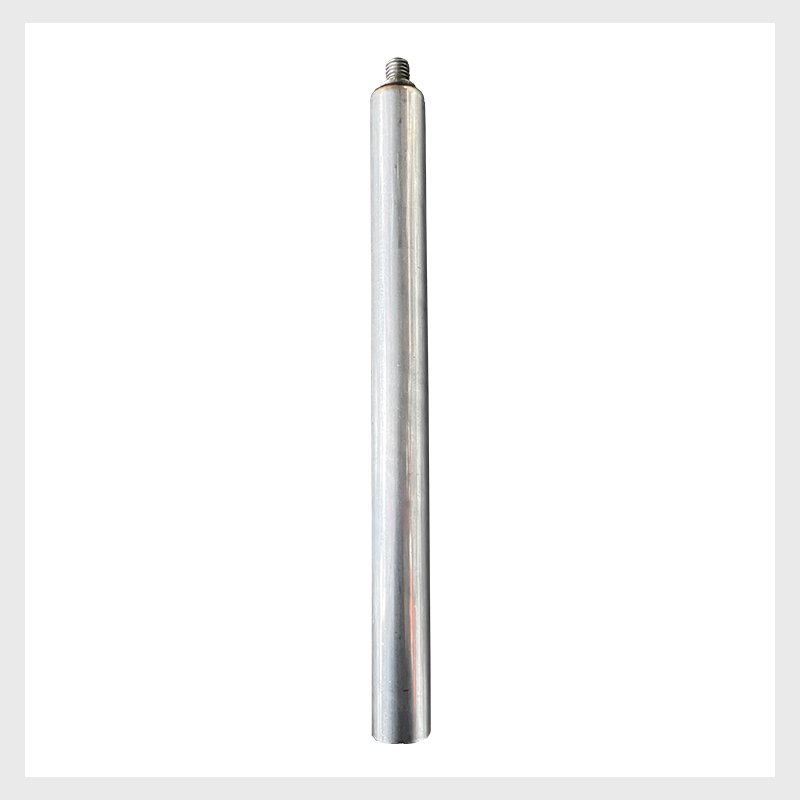

Welding Capacity: The flange specification of the bolt is Φ12; The cylinder specification that the welding fixture can hold is Φ22.

Specification: Weight: 1000KG, Size: 1500*1600*2000mm

지금 문의하기

The Production Method of The Equipment

The operation process of AGERA’s air spring spot welding machine is as follows: First, the operator places the steel tube on the swing rod, inserts the bolt into the upper electrode, starts the welding machine, then sends the swing rod to the welding position, the machine automatically clamps the steel tube, the machine head presses down to start the welding, after the welding is completed, the swing rod swings out, and the operator takes the material.

왜 Agera를 선택해야 하나요?

아게라 의 선도적인 제조업체입니다 스팟 용접기 중국에서. 우리는 제공합니다 원스톱 저항 용접 솔루션. 당사의 용접기는 신뢰할 수 있는 품질을 갖추고 있으며 ISO 품질 인증 및 세 인증. 우리는 당신에게 신속하게 제공할 수 있을 뿐만 아니라 표준 저항 용접기, 또한 반자동 또는 완전 자동을 사용자 정의할 수 있습니다. 자동 용접 장비 당신을 위한.

Agera는 용접기 구조의 신속한 프로토타입 제작 및 설치를 보장하기 위해 첨단 머시닝 센터를 보유하고 있습니다. 제품 테스트 프로세스 귀하께서 만족스러운 기계를 받으실 수 있도록 최선을 다하겠습니다. 또한, 강력한 기술 팀, 고객님께 더욱 완벽한 기계를 설계하기 위해 R&D와 혁신을 고집합니다. 애프터 서비스 팀 귀하의 정상적인 생산을 항상 지원할 준비가 되어 있습니다.

Advantages of The Air Spring Spot Welding Machine

Hydraulic spring spot welding machine welding

High welding accuracy

Based on the characteristics of the spring steel, AGERA has specially customized fixtures for it. It can precisely position the workpiece at the welding position with a positioning accuracy of ±0.1mm. During the pressing process of the workpiece, it can not only ensure that the welding is not out of position, but also ensure that the welded cylinder does not deform.

즉시 견적 받기 지금 문의하세요

The cylinder of the spot welding machine

Data monitoring system

The equipment is equipped with a data traceability and monitoring system, which can monitor real-time parameters such as welding time, current, and pressure. These data can be saved and accessed at any time to check the quality of the welded products, thereby improving the yield rate of product welding.

즉시 견적 받기 지금 문의하세요

The electrodes of the air spring spot welding machine

High welding efficiency

The equipment uses a medium-frequency DC welding controller, with fast and stable discharge. The welding time is only 1 second. Moreover, compared with traditional manual welding, the AGERA pneumatic spring welding special machine has rapid positioning, which not only avoids human positioning errors but also speeds up the process.
