Automatic Steel Wire Spot Welder

Model: AZDB-130

Power: 30kW

Utilization Rate: 80%

Typ.: 4s/weld point

Air Pressure: 0.6-0.8MPa

Dimensions: 10,000*1,500*2,300mm

Welding Material: Stainless Steel

Welding Capacity: 3-9mm steel wire + 50mm diameter round pipe

Send Inquiry Now

Equipment Operation

AGERA’s automatic wire spot welding machine requires a human operator to place the workpiece on a material rack and press a button to start the machine. Once the welding machine is started, a servo tooling assembly moves the workpiece to the welding position, welding multiple spots sequentially according to the welding route. After welding is complete, the workpiece is manually removed.

Send Inquiry Now

Equipment Safety Features

AGERA’s wire spot welders utilize a two-hand pushbutton starter with a timer function and are equipped with an emergency stop button. In the event of an emergency, the equipment stops upon pressing the emergency stop button, ensuring operational safety. The equipment is equipped with a three-color indicator light and a safety alarm, allowing operators to quickly identify the cause of an alarm and address any errors promptly.

Send Inquiry Now

High Welding Efficiency

AGERA’s semi-automatic wire spot welder uses servo-controlled workpiece rotation to precisely position the weld point during the welding process, resulting in high workpiece movement and welding speeds. Furthermore, the lower welding electrode is height-adjustable, allowing for easy switching between workpieces of varying sizes.

Send Inquiry Now

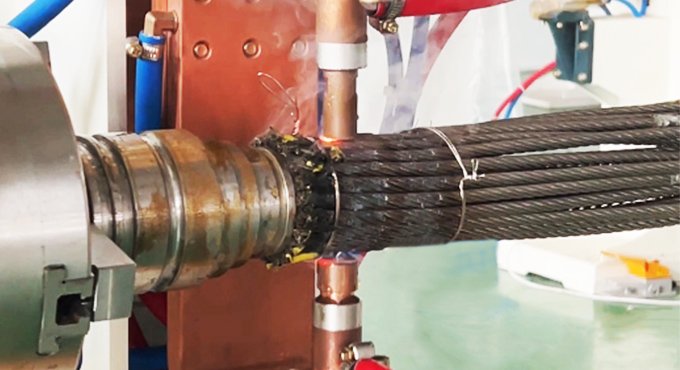

High Welding Efficiency Steel Wire Welding

Why Choose Agera?

Agera's resistance welding machine workshop

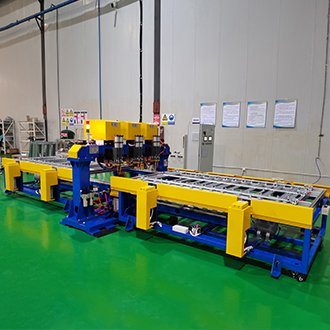

A batch of custom-made resistance welding machines

Agera is a leading manufacturer of resistance welding machines in China. We provide one-stop resistance welding solutions. Our welding machines are of reliable quality and have passed ISO quality certification and CE certification. We can not only quickly provide you with standard resistance welding machines, but also customize semi-automatic or fully automatic welding equipment for you.

Agera has an advanced machining center to ensure the rapid prototyping and installation of the welding machine structure. We have a complete product testing process to ensure that you receive a satisfactory machine. In addition, we have a strong technical team, insisting on R&D and innovation to design a more perfect machine for you. Our after-sales team is always ready to escort your normal production.
