Motor Pins Precision Clamping Welding Machine
Model: ADB-180
Maximum output welding current: ≥ 25KA
Rated power: ≥ 80KVA
Inverter frequency: ≥ 1000HZ
Air source pressure: 0.5 – 0.7Mpa

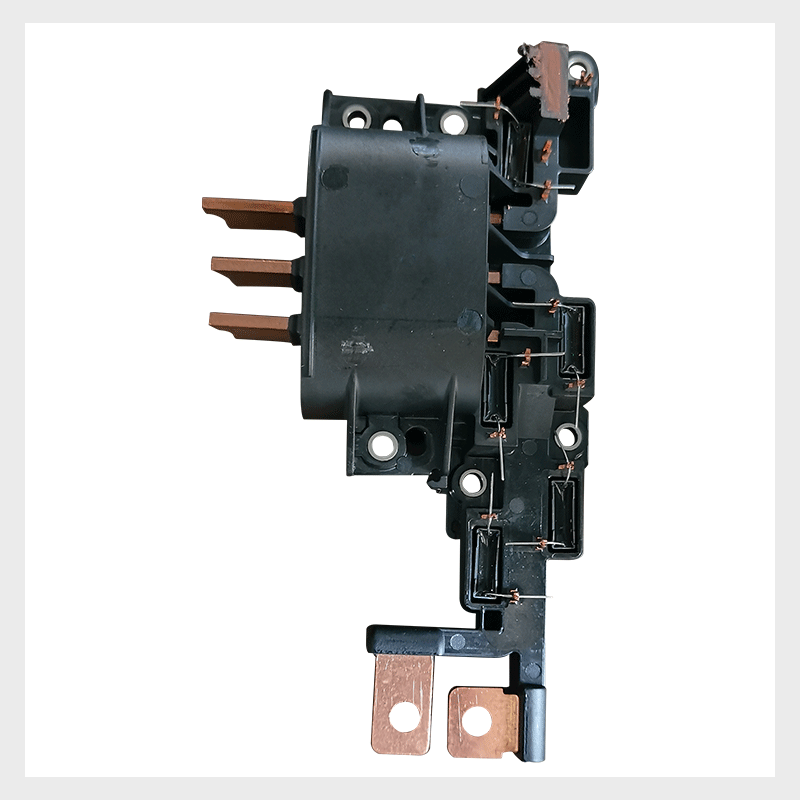

Welding products: motor pins, enameled wire terminals, etc.
Equipment specifications: Weight: 800KG, Dimensions: 1600*1500*2400mm
Welding Process
The product to be welded is placed into the positioning fixture by hand. After scanning with a handheld device, both hands activate the switch system to complete the welding automatically. After the welding is finished the material is withdrawn and the product is manually removed. Different specifications of products require the replacement of the fixture. The fixture design is capable of quick type change and can meet the welding requirements for similar series stator terminals.
Why Choose Agera?
Agera is a leading manufacturer of spot welding machine in China. We provide one-stop resistance welding solutions. Our welding machines are of reliable quality and have passed ISO quality certification and CE certification. We can not only quickly provide you with standard resistance welding machines, but also customize semi-automatic or fully automatic welding equipment for you.
Agera has an advanced machining center to ensure the rapid prototyping and installation of the welding machine structure. We have a complete product testing process to ensure that you receive a satisfactory machine. In addition, we have a strong technical team, insisting on R&D and innovation to design a more perfect machine for you. Our after-sales team is always ready to escort your normal production.
The Advantages of The Motor Pin Clamping Welding Machine
The automatic clamping welding machine of AGERA is equipped with a servo positioning system. It has accurate positioning without any shaking, with a repeat positioning accuracy of ±0.05mm. During the welding process, it automatically rotates to find the angle, eliminating the need for manual intervention and eliminating the errors caused by manual welding.
The position and height of the welding electrodes on this clamping welding machine can be servo-adjusted, as can the product feeding position and rotation angle. It is compatible with different specifications of products for welding, and can be used for multiple purposes, saving equipment costs.
The clamping welding machine of AGERA is equipped with an external monitoring device. It can monitor and display the current, voltage and time of the welding output. If there is any error in the data, it will promptly give an alarm to ensure the yield rate.
