Pump Frame Resistance Butt Welding Machine

Model: AUNS-150-Q01-S01

Rated Capacity: 150KVA

Input Power: 3-phase, 5-wire, 380±10%V, 50Hz

Maximum Short-Circuit Current: 25KA

Working Height: 800-900mm

Welding Capacity: 900mm² mild steel

Dimensions: 2000*1200*1700mm

Weight: 1200kg

Send Inquiry Now

Equipment Features

The AGERA pump frame resistance butt welding machine is a semi-automatic machine developed by Agera specifically for joining metal parts. It utilizes lever-assisted pressurization and a gas-liquid mixed sintering upset forging process. This allows for fast and precise pressurization, enabling rapid and perfect joining of metal materials such as carbon steel and stainless steel.

Send Inquiry Now

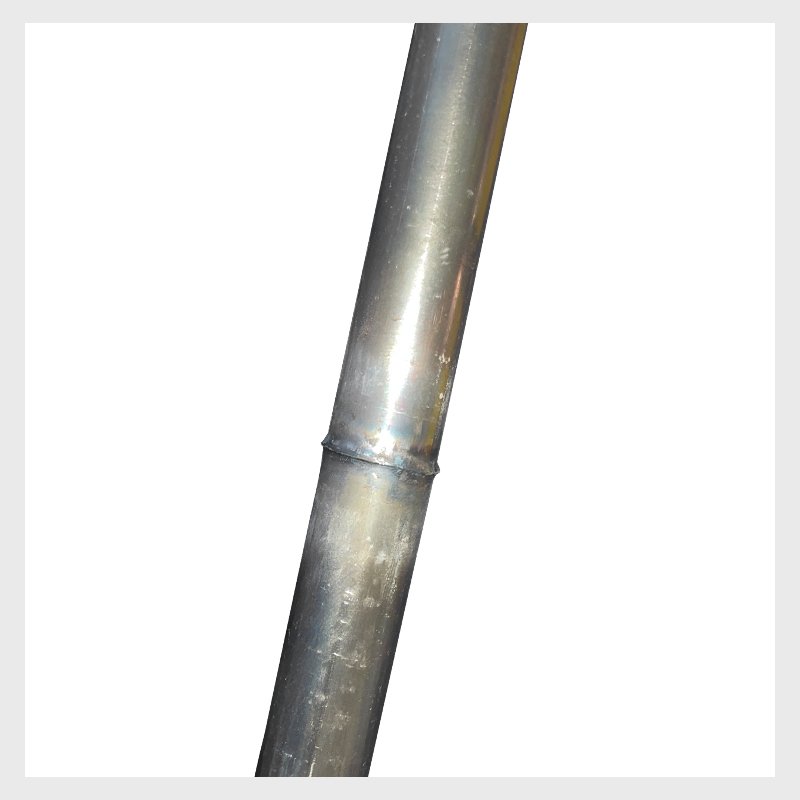

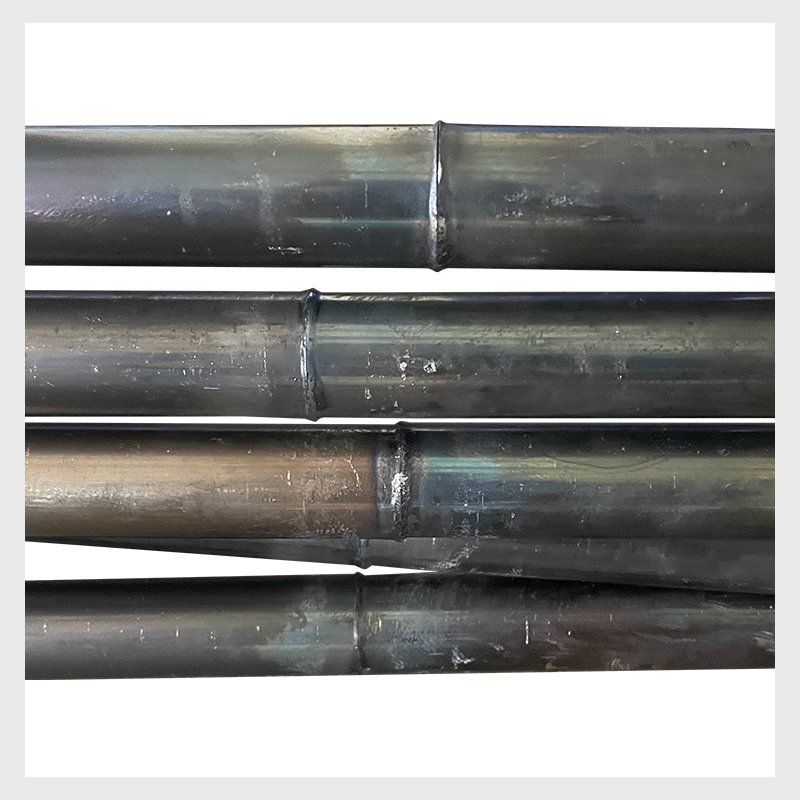

Carbon steel bars are being welded with a butt welding machine.

Intelligent Welding

The AGERA pump frame butt welding machine uses a microcomputer chip to control parameters such as welding current. Engineers can pre-set different welding parameters and store them in the system. Operators can then directly call up the parameter plan and begin welding.

Send Inquiry Now

Simple Operation

Compared to traditional arc welding and other welding methods, AGERA’s resistance butt welding machine is much simpler to use for joining metals. Operators simply place the workpiece between upper and lower electrodes and press a switch, and the machine automatically clamps the workpiece and begins welding. No advanced skills are required.

Send Inquiry Now

The gas storage tank of the welding machine

Why Choose Agera?

Agera's resistance welding machine workshop

A batch of custom-made resistance welding machines

Agera is a leading manufacturer of resistance welding machines in China. We provide one-stop resistance welding solutions. Our welding machines are of reliable quality and have passed ISO quality certification and CE certification. We can not only quickly provide you with standard resistance welding machines, but also customize semi-automatic or fully automatic welding equipment for you.

Agera has an advanced machining center to ensure the rapid prototyping and installation of the welding machine structure. We have a complete product testing process to ensure that you receive a satisfactory machine. In addition, we have a strong technical team, insisting on R&D and innovation to design a more perfect machine for you. Our after-sales team is always ready to escort your normal production.
