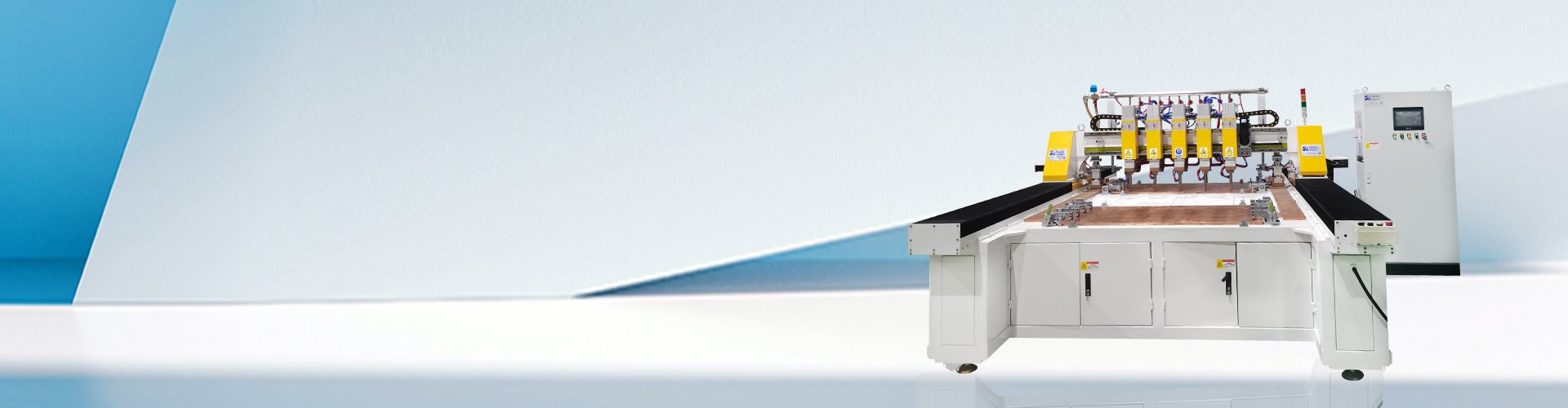

Agera's Gantry Spot Welder
Agera’s gantry spot welders are available in various forms. They can be divided into single-head and multi-head gantry spot welders according to the number of electrodes; they can be divided into industrial frequency and medium frequency spot welders according to the type of power supply; they can be divided into spot welding and projection welding according to the welding process; in addition, there are differences in the degree of automation. Traditionally, the welding is done by manually moving the electrodes, but now it can be equipped with different degrees of automation functions, such as automatic welding with the XY axis movement of the welding head, and equipped with movable platforms and other functions. If you need a fully automatic gantry spot welder, we can combine it with a robot to form a welding production line.
Manually move the upper electrode to weld the welding points on the sheet metal parts, which can be used to weld special materials such as door panel reinforcement ribs.

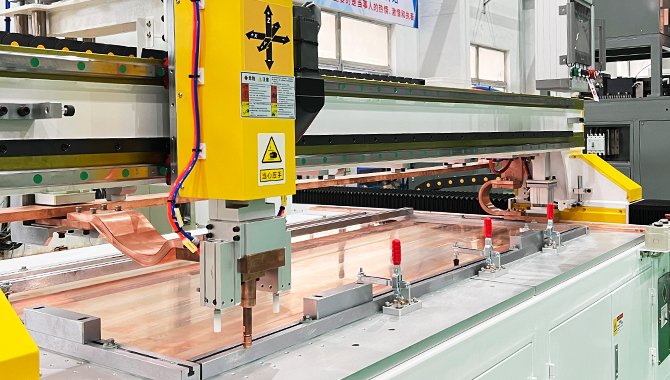

Its electrodes can move in the XY axis to automatically weld the welding points on the sheet metal parts fixed on the platform.
It can weld 5 welding points on sheet metal parts at the same time, and the welding head can move in XY axis and is equipped with an extra-large platform.
Mainly used for welding reinforcement ribs, it can weld 8 points at the same time and requires manual loading and unloading.
It can weld 24 welding points on sheet metal parts at the same time, and can also set some welding guns not to work or weld one by one.
Three heads weld simultaneously, and the electrode and platform can move simultaneously so that the electrode can be placed in the correct welding position.
It is a machine designed for projection welding of nuts or bolts and is equipped with a conveyor for automatic welding.
This machine is equipped with robots for loading and unloading, and cooperates with other welding processes to achieve automatic welding of bipolar plates.
Principle of Gantry Spot Welding Machine
Agera’s Gantry spot welding machines are a form of resistance welding machine. The workpiece is placed on the working platform. When working, the electrode or platform moves so that the electrode is precisely located at the welding position. During spot welding, the electrode presses the workpiece tightly, and the current instantly passes through the electrode and the workpiece to generate resistance heat for welding. The electrode will move to each welding point one by one to complete the welding of a workpiece.
Why Choose AGERA?
AGERA is a professional manufacturer and developer of resistance welding machines and automated equipment. The company boasts a comprehensive R&D, production, and sales team with over 20 years of welding technology experience. AGERA has partnered with over 8,000 clients both domestically and internationally, including more than 8 Fortune 500 companies.
AGERA’s main products include spot welding machines, seam welding machines, projection welding machines, and butt welding machines, as well as various custom-designed automatic welding machines. Our products meet ISO and CE quality certification standards, ensuring reliable, high-quality equipment. We provide 24/7 online technical support, and over 85% of common problems can be resolved directly through remote assistance.
More About Agera
- Welding Samples
- Certificates
- Latest Welding Solutions
- Our Team
Related Products
Send your inquiry today
Different types of gantry spot welders have different prices. You can send us your welding requirements and our engineers will give you a welding plan and evaluate the price.
These machines are basically equipped with a welding detection system. If there are false welds and leaks, the machine will prompt an alarm.
Agera focuses on the production of resistance welding machines. Its main products include spot welders, projection welders, seam welders and butt welders. Tell us your needs and we will recommend a suitable machine to you.
Of course, you can send your products to our factory, and we will use a prototype to test them for you and send them to you.
