Iron Drum Multi-point Spot Welding Machine

Model: ADB-920

Rated Capacity: 920 kVA

Input Power: Three-phase 380 V

Cylinder Specifications: C250*125*2 mm

Welding Pressure: 47,000 N

Maximum Short-Circuit Current: 120 kA

Air Source Pressure: 0.6-0.7 MPa

Weight: 2,300 kg

Send Inquiry Now

Features of the Roller Multi-Spot Welder

This welder features a compact, ergonomically designed, box-shaped structure for easy operation. Its reinforced frame, crafted from high-quality steel, ensures the required rigidity and precision. It also boasts strong environmental adaptability and a long service life.

Send Inquiry Now

Function of a Roller Multi-Spot Welder

This equipment is specifically designed for welding discs and rollers. The material is Q235B iron, the weld thickness is 3mm, and there are 36 bumps at the workpiece contact points. This welding equipment is equipped with automatic tooling positioning, and a single discharge can weld the workpiece into shape. Welding a single part takes approximately 30 seconds, including manual workpiece placement and removal.

Send Inquiry Now

MFDC Welding Technology

This multi-spot projection welder utilizes MFDC welding technology, which rectifies three-phase AC power into pulsating DC, then steps it down through a transformer for welding. This welding process is more precise and efficient, ensuring weld quality and improving production efficiency.

Send Inquiry Now

Why Choose Agera?

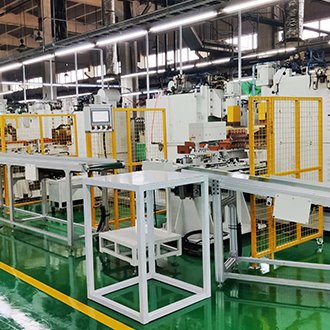

Agera's resistance welding machine workshop

A batch of custom-made resistance welding machines

Agera is a leading manufacturer of resistance welding machines in China. We provide one-stop resistance welding solutions. Our welding machines are of reliable quality and have passed ISO quality certification and CE certification. We can not only quickly provide you with standard resistance welding machines, but also customize semi-automatic or fully automatic welding equipment for you.

Agera has an advanced machining center to ensure the rapid prototyping and installation of the welding machine structure. We have a complete product testing process to ensure that you receive a satisfactory machine. In addition, we have a strong technical team, insisting on R&D and innovation to design a more perfect machine for you. Our after-sales team is always ready to escort your normal production.
